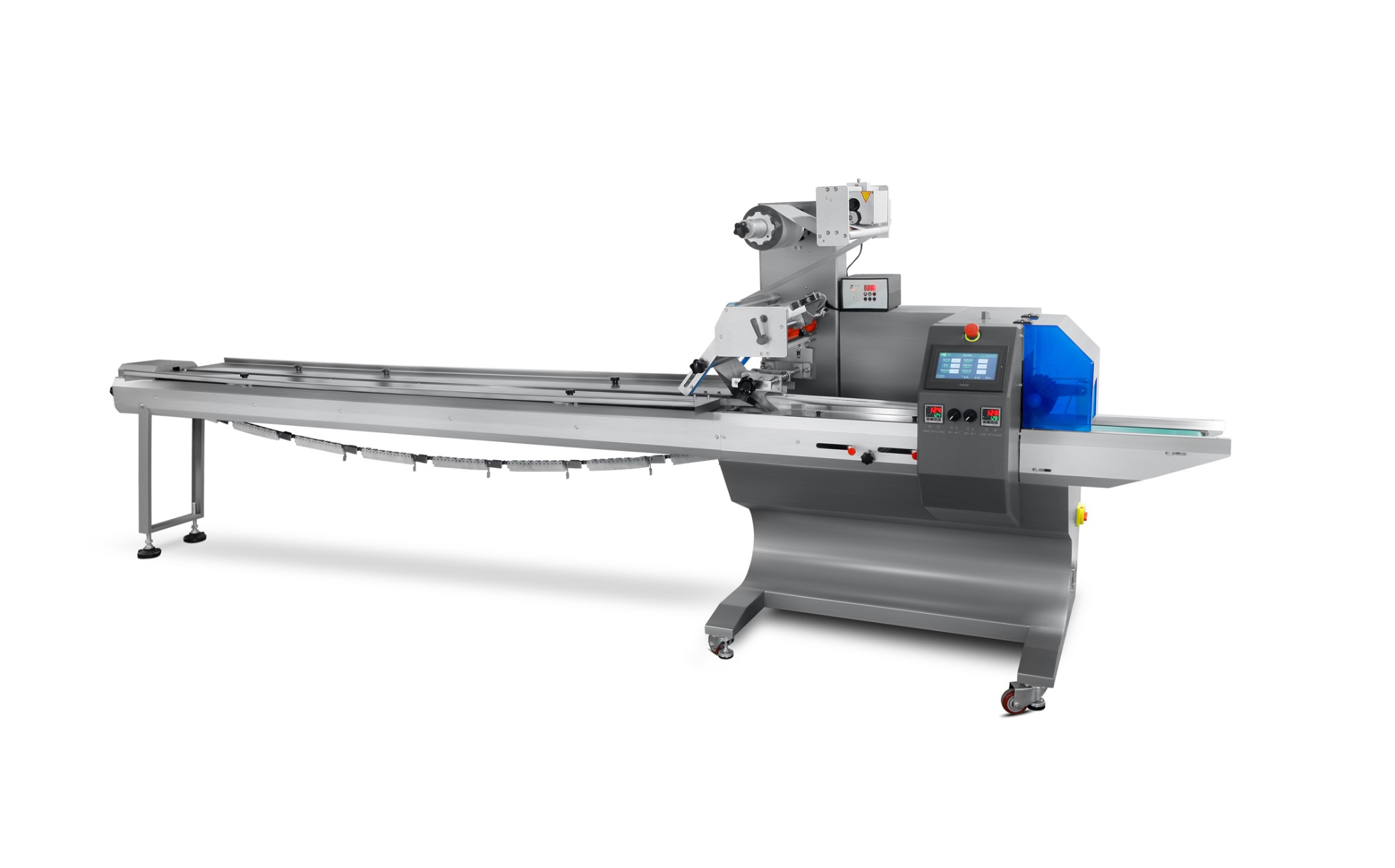

FG-1000-450DAN 3 servos up paper flow wrapper

Model:FG-1000-450DAN
Film Width:Max.440mm
Bag length:180~450mm
Bag width: 80~200mm
Product Height: Max.80mm
Film roll diameter: Max.320mm
Packing speed: 40~80Bags / min
Power Specifications: 220V,50/60HZ,2.8KW
Machine size: (L)3744×(W)860×(H)1548mm
Approximately Weight : 450kg

Product Details

Product Tags

(Ⅰ).Main performance and structure features

1. Servo 3 motors or standard double inveters, PLC controller,flexible bag length setting and cutting,saving time and film.

2. human-machine interface, convenient and quick parameter settings, when the product is sensed by the sensor, then it will be packing automatically, otherwise, it will be stopped.

3. Self diagnosis failure function, failure displayed clearly.

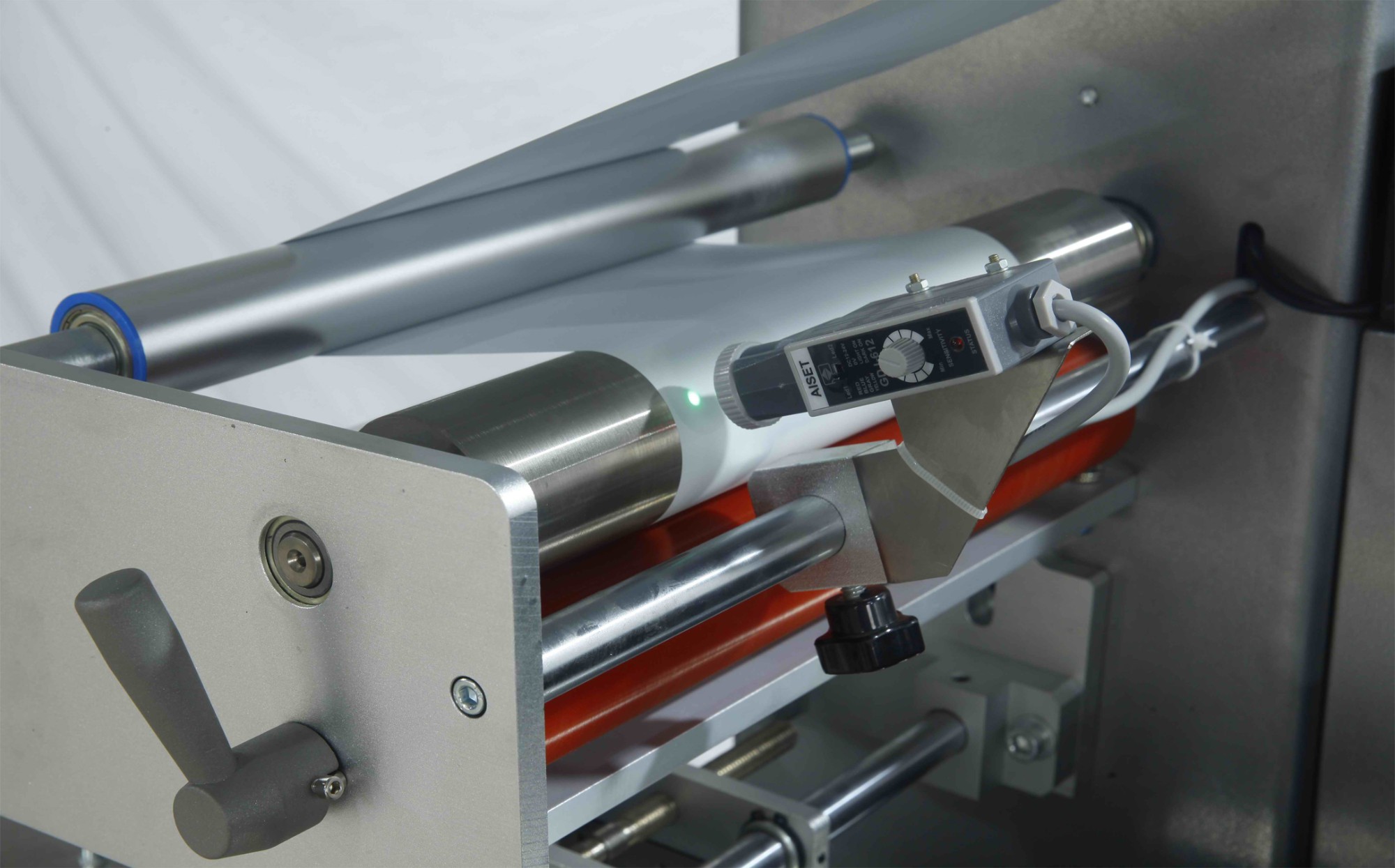

4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.

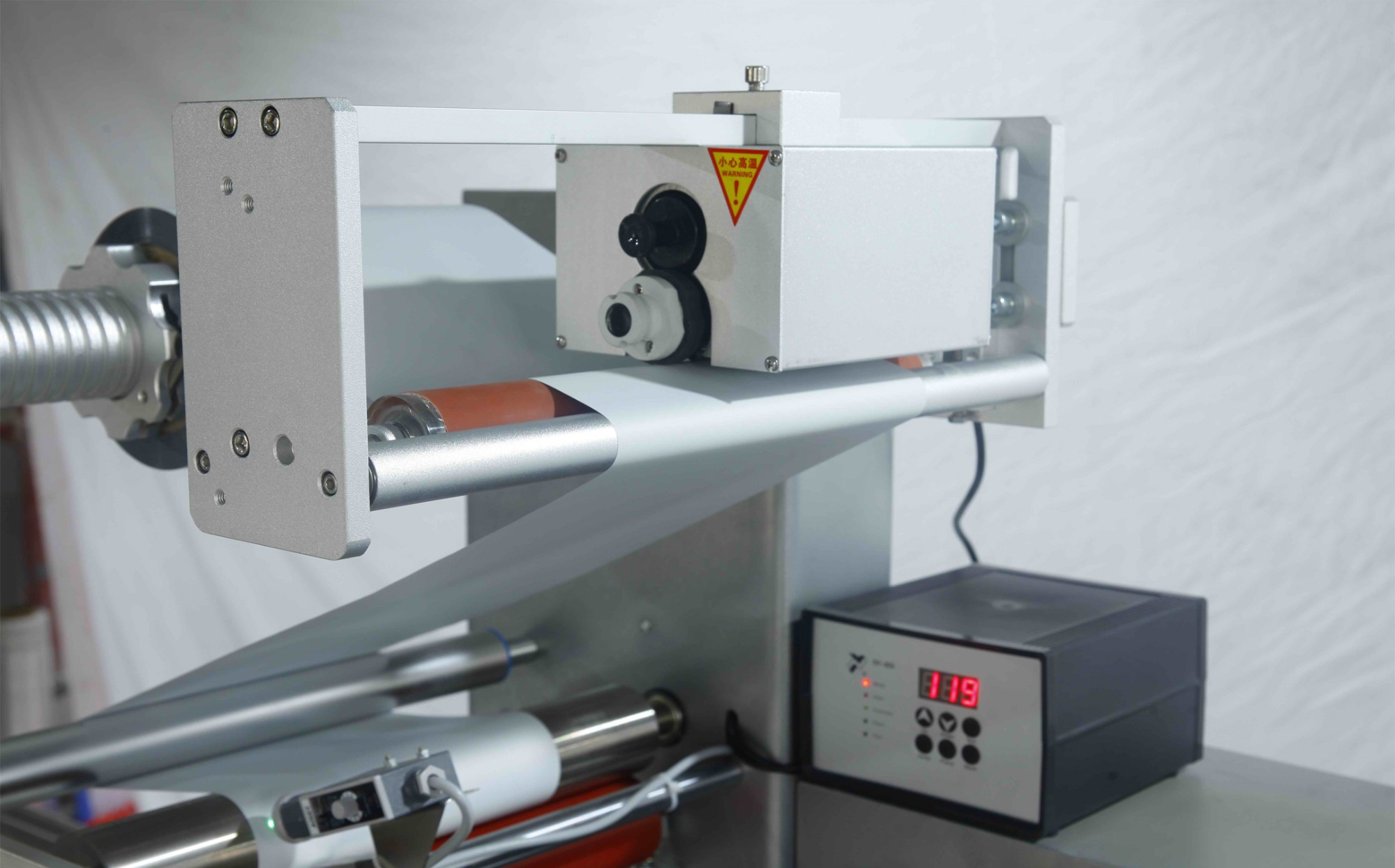

5. Separated PID control system for temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.

7. Simple driving system, reliable working, convenient maintenance.


(Ⅱ).Scope of application

Applying to the packing of various kinds of items with regular shape in many industries, like food, hardware, medical products, daily use products, stationary,toys, hotel supplies, electric products etc.
