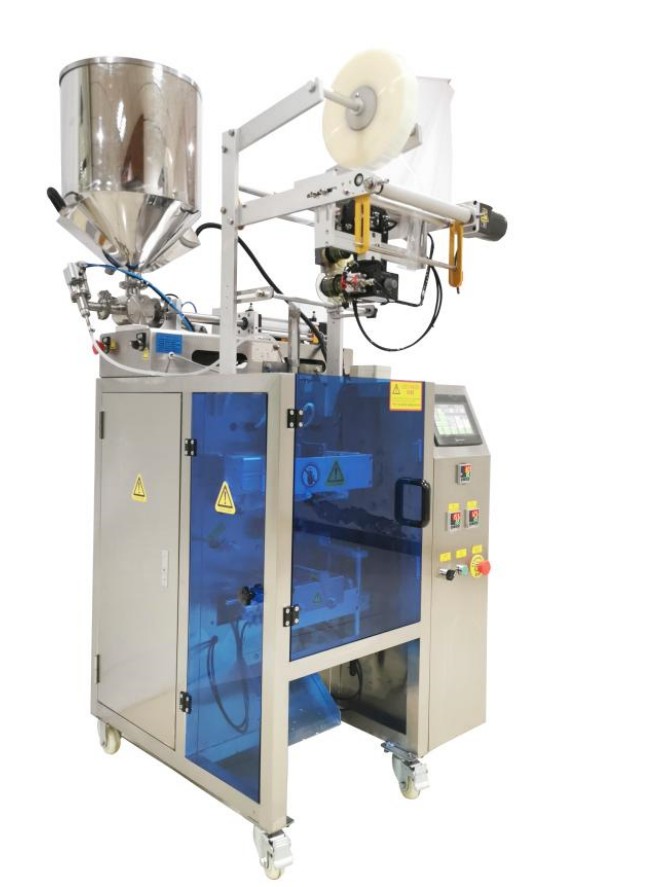

FG-L240 Liquid packaging machine

FG-L240 Liquid packaging machine
Model:FG-L240
Appearance:Stainless steel
Film width:240mm
Bag size:(L)40-200mm(W)25-120mm
Filling range:1-100ml
Film thickness:0.04-0.08mm
Roll diameter:Max.300mm
Packing speed:5-80bags/minute
Power:220V,50/60HZ,2.2KW
Air consumption:0.8Mpa 0.3m³/minute
Machine size:(L)830(W)800(H)1670mm
Machine weight:160KG
Optional device:Coding device/ wire bag device/ Punching device
Machine package : Export wooden cases

Product Details

Product Tags

(Ⅰ). Feature

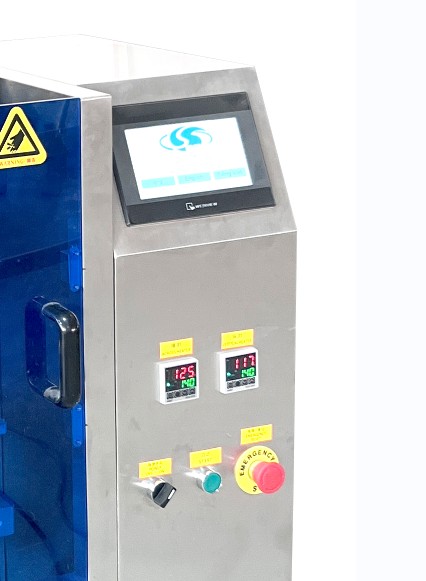

1.Chinese or English display, easy operation.

2. High-sensitivity photoelectric eye co lortracing, digital input of cutting, sealing and position with extra accuracy.

3. Packing speed and bag length can be set through the touching screen without any part change.

4. The machine can change the bag-ma aking system and packaging quantity to satisfy the different sizes and requirements of bags.

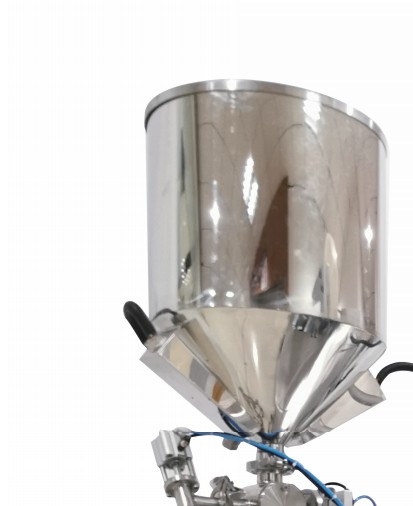

5.The piston pump blanking adjustme ont device can adjust the packaging capacity at any time during the machine operation, reduce material loss and improve work efficiency.


(Ⅱ). Application

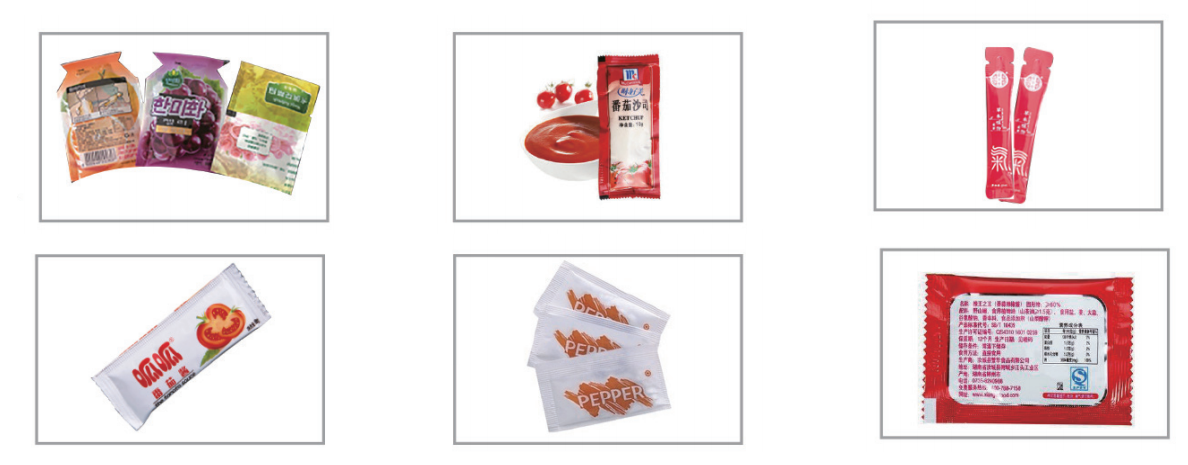

It is applicable to liquid ,paste and paste materials in medicine , daily chemical ,food and pesticlde industries.Such as shampoo, shower gel, face cream, fruit juice , jam,sauce ,etc.
